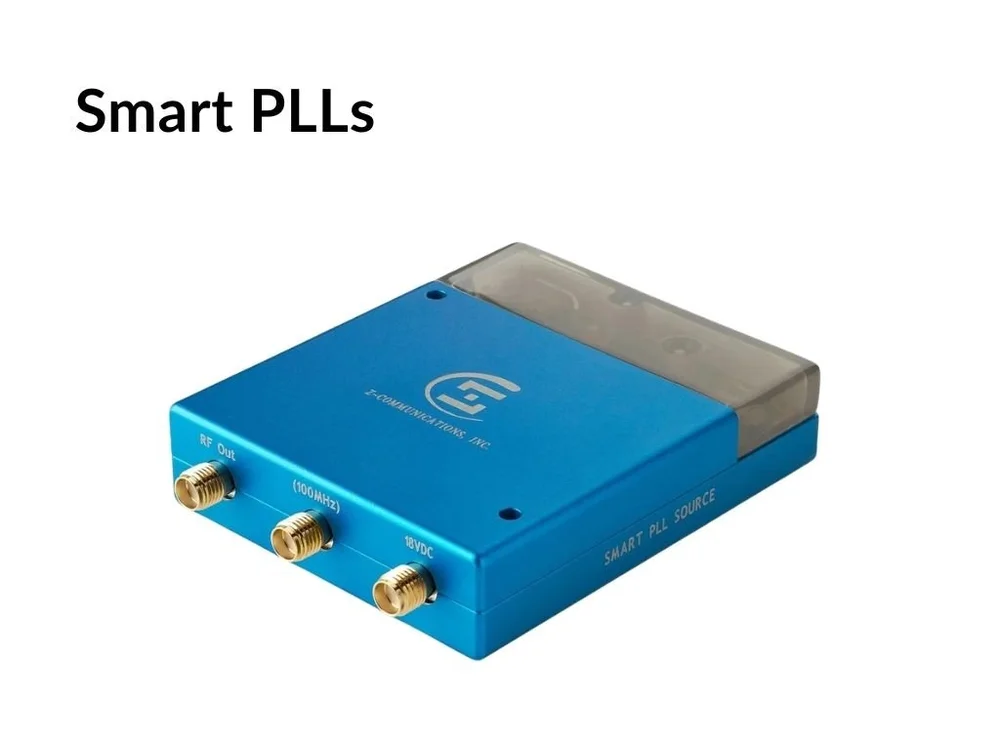

Smart PLLs
Fractional-N synthesizers with drop-in software control.
- USB/SPI with GUI utility
- Integrated reference oscillators
- Wide frequency coverage
- Control through SmartPLL App ( iOS & Android) or via USB-C
- Frequency range of 45 MHz - 22.6 GHz
Products
R&D Ready Hardware
Quick access to Smart PLLs, Phase Locked Oscillators, RF Switches, and Amplifiers. Click the button on any card to view in-stock and ready-to-ship models on the webstore.
New Smart PLL Frequency Synthesizer
SSG4522ATLX with Amplifier & Linear Attenuator
45 MHz to 22.6 GHz, dual RF outputs, and 0.1 Hz resolution. The new configurable linear attenuator provides 0–31.875 dB of attenuation in 0.125 dB steps, expanding on the SSG4522ALX's 3–24 dB range.
Typical phase noise is specified at -108 dBc/Hz at 8 GHz with a 10 kHz offset. The attenuator introduces an average 2 dB insertion loss relative to the base model.
Featured R&D Blocks

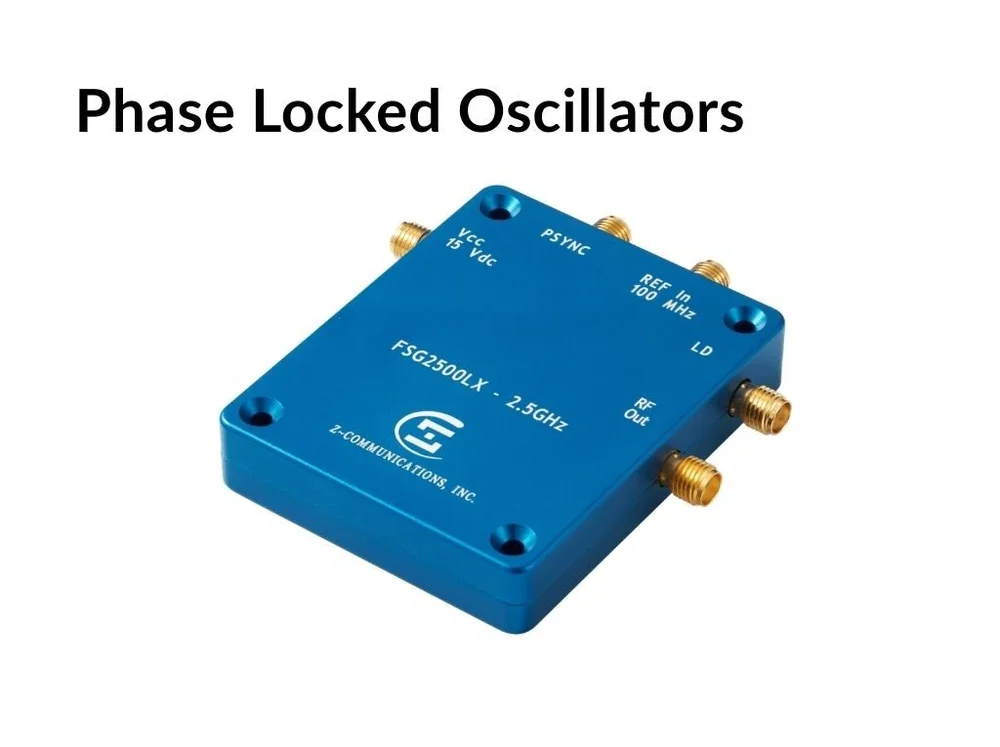

Phase Locked Oscillators
CRO and DRO based solutions with catalog performance.
- Tight phase noise
- Webstore fulfillment
- Standard tracking filters

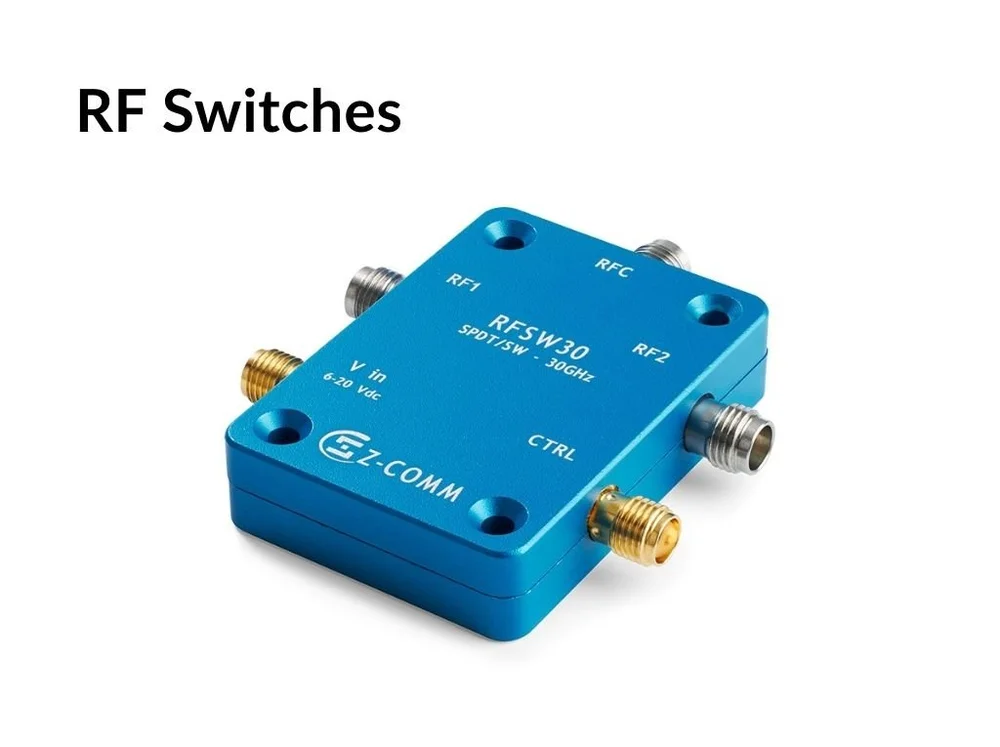

RF Switches
Solid-state SPDT switches built for automated labs.
- Low insertion loss
- High isolation
- Logic-ready control pins

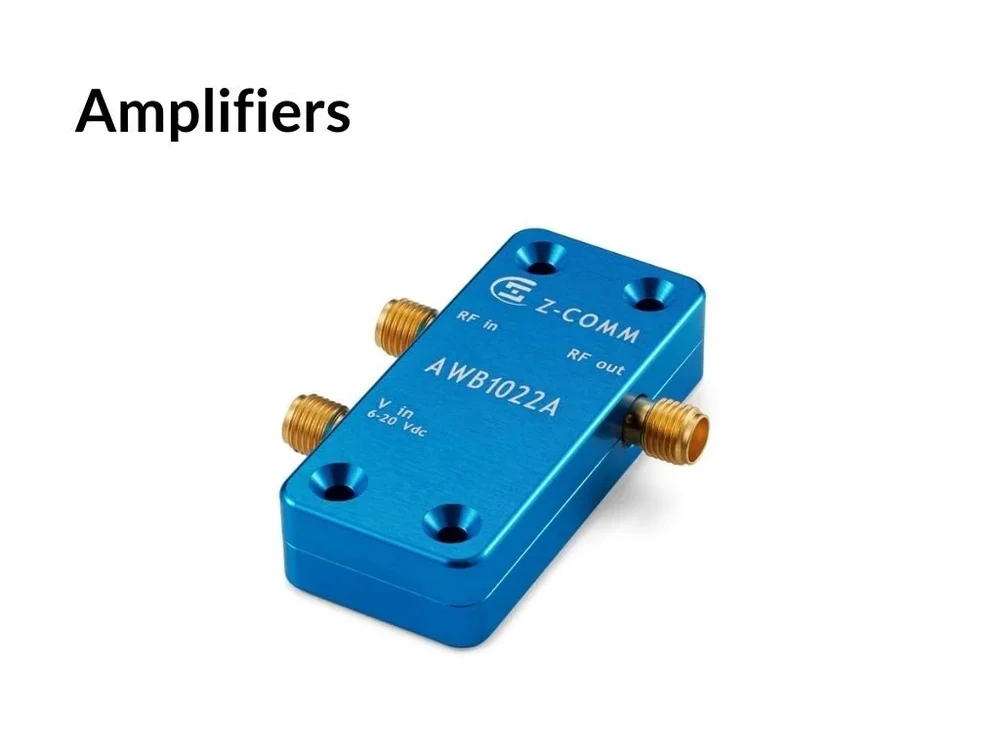

Amplifiers
Broadband gain blocks complementing the PLL chains.
- Class A linearity
- Gain flatness over octave bands
- SMA I/O connectors
