Z-COMM VCO Products
Voltage-Controlled Oscillators

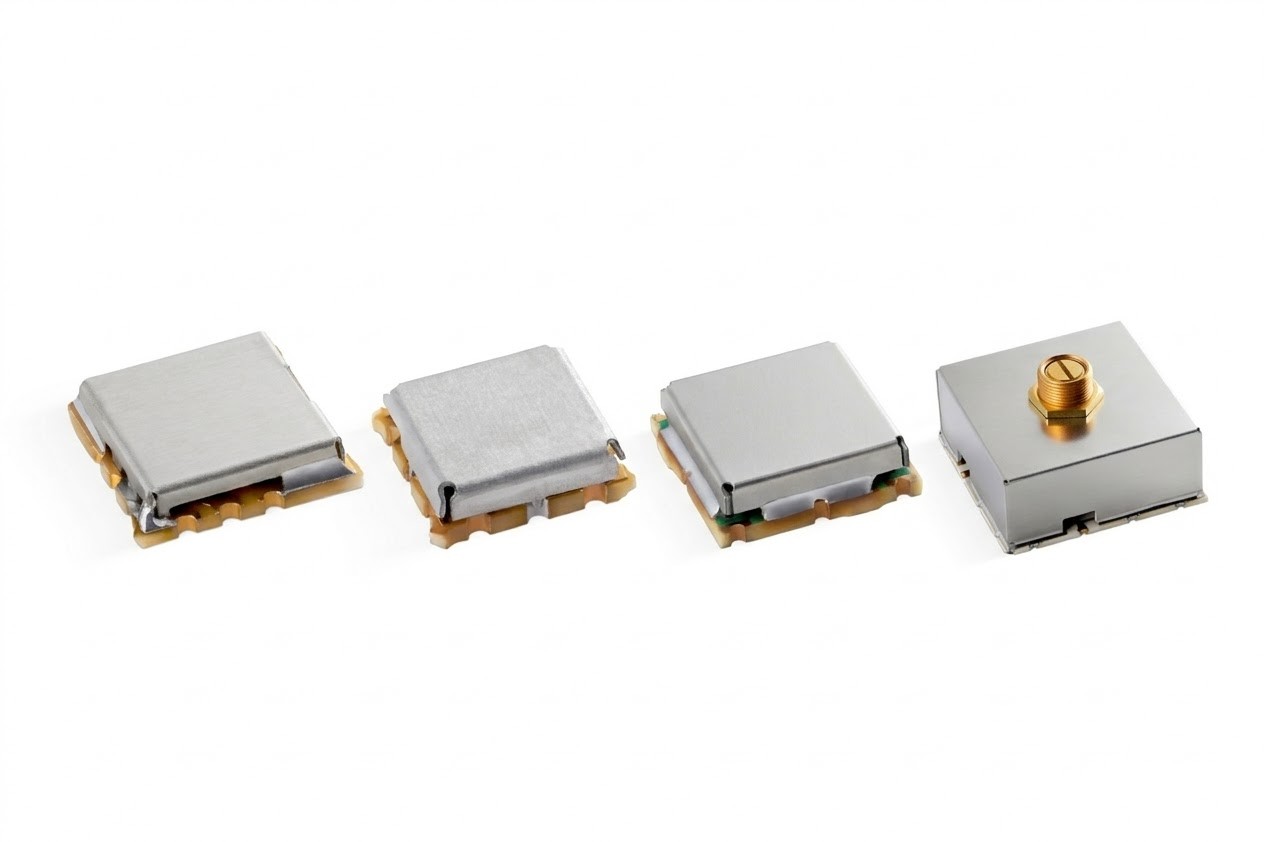

VCO (Voltage Controlled Oscillator) Modules

V Series VCO

40 MHz - 6.5 GHz
Low phase noise
0.5” x 0.5” package
Octave tuning available
Low shield option
Linear tuning
Low cost

CRO Series VCO

400 MHz - 8 GHz
Ultra-low phase noise
0.5” x 0.5” package
Up to 15% BW
Low tuning sensitivity
Excellent linearity

CLV Series VCO

400 MHz - 6.8 GHz
Ultra-low phase noise
0.5” x 0.5” package
Up to 30% BW
Low shield option
Linear tuning

SLV Series VCO

800 MHz - 2 GHz
Ultra-low phase noise
0.5” x 0.5” package
Narrow bandwidth
Low shield option
Linear tuning
Reduced microphonics

SMV Series VCO

100 MHz - 6.4 GHz
Low phase noise
0.3” x 0.3” package
Low power consumption
Low cost

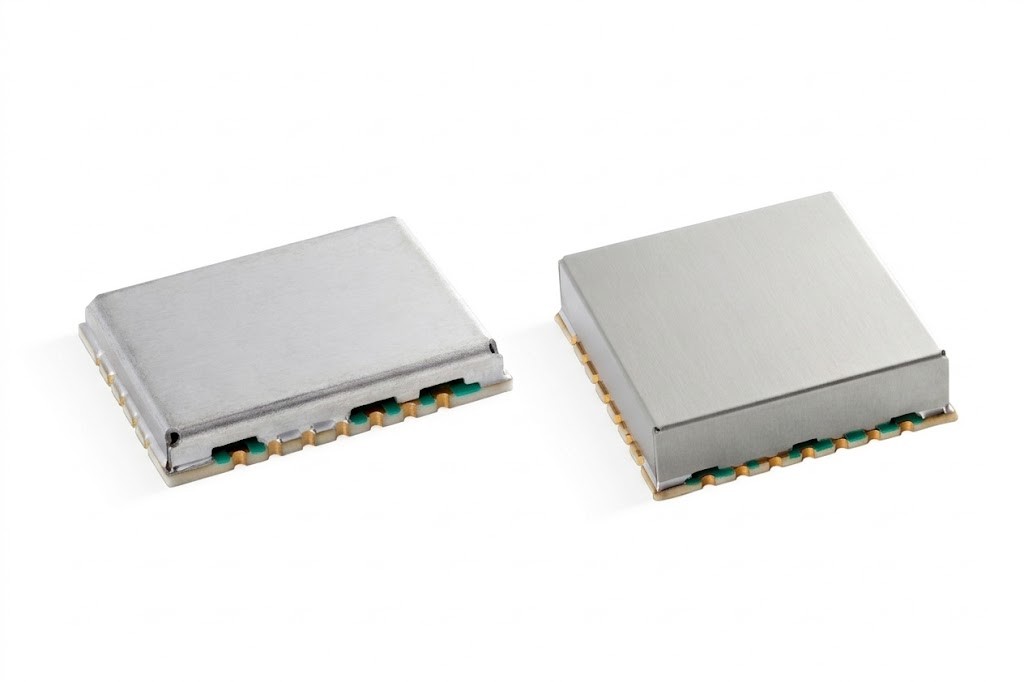

Z-COMM PLL
Products
Phase-Locked Loop Synthesizers

PLL (Phase-Locked Loop) Synthesizers

Additional
RF Designs

Additional RF Designs

Integer & Frac-N PLL

80 MHz - 6 GHz
Low phase noise
Small step size
Low supply voltage
Low shield option
Fast lock time
Small package size

SFS Series PLL

400 MHz - 10 GHz
Fixed frequency
Ultra-low phase noise
Eliminates external programming
Sizes as small as 0.6” x 0.6”
Maximum comparison frequency
Self locking mechanism
Reference spur suppression <-70 dB

WiMAX Power Amplifier

3.4 - 3.6 GHz
Gain: 46 dB (typ.)
EVM <2%
OFDM Output: 37 dBm (min.)
Built-in AGC and alarms

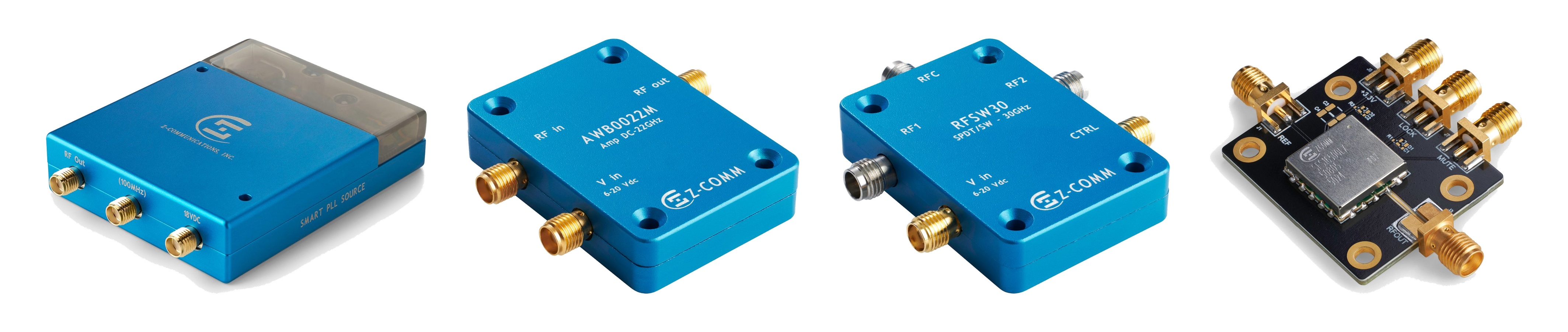

Test Fixtures and Eval Boards
